BDK1520

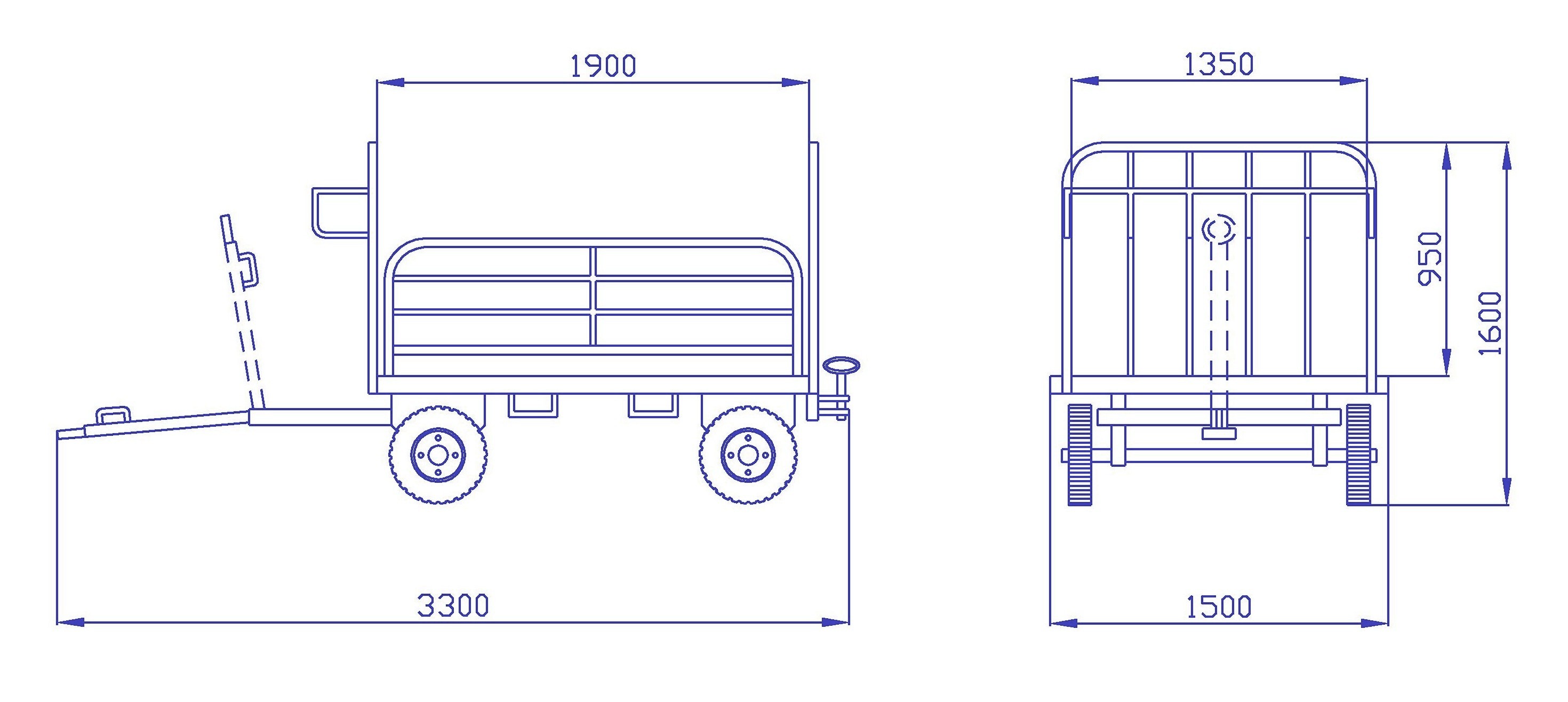

The trolleys are designed for transporting loosely loaded baggage of airplane passengers. The frame is made from fully galvanized steel hollow sections. The loading area has dimensions of 1500 x 2000 mm and consists of two water resistant plywood boards with a V to the centre and a channel between the boards for rainwater drainage. The front and the rear walls are removable for transportation. The side walls can be folded for handling the load and transporting. The trailers are equipped with a parking brake activated by lifting and locking the drawbar in the upright position. Wheels with steel rims are fitted with solid rubber tyres 4.00-8 in size. The drawbar has an eye 40 mm in diameter, and the rear hand operated hitch 30 mm in diameter.The trolleys can be delivered with tarpaulins, in blue colour as standard; other colours can be offered on demand.
The maximum service load is 1500 kg.
Optional configuration and equipment
-
Extended version BDK 1525
-
Enclosed cage superstructure
-
Roof
-
Fully enclosed superstructure
-
Automatic rear hitch (Rockinger brand)
PDF BROCHURE
